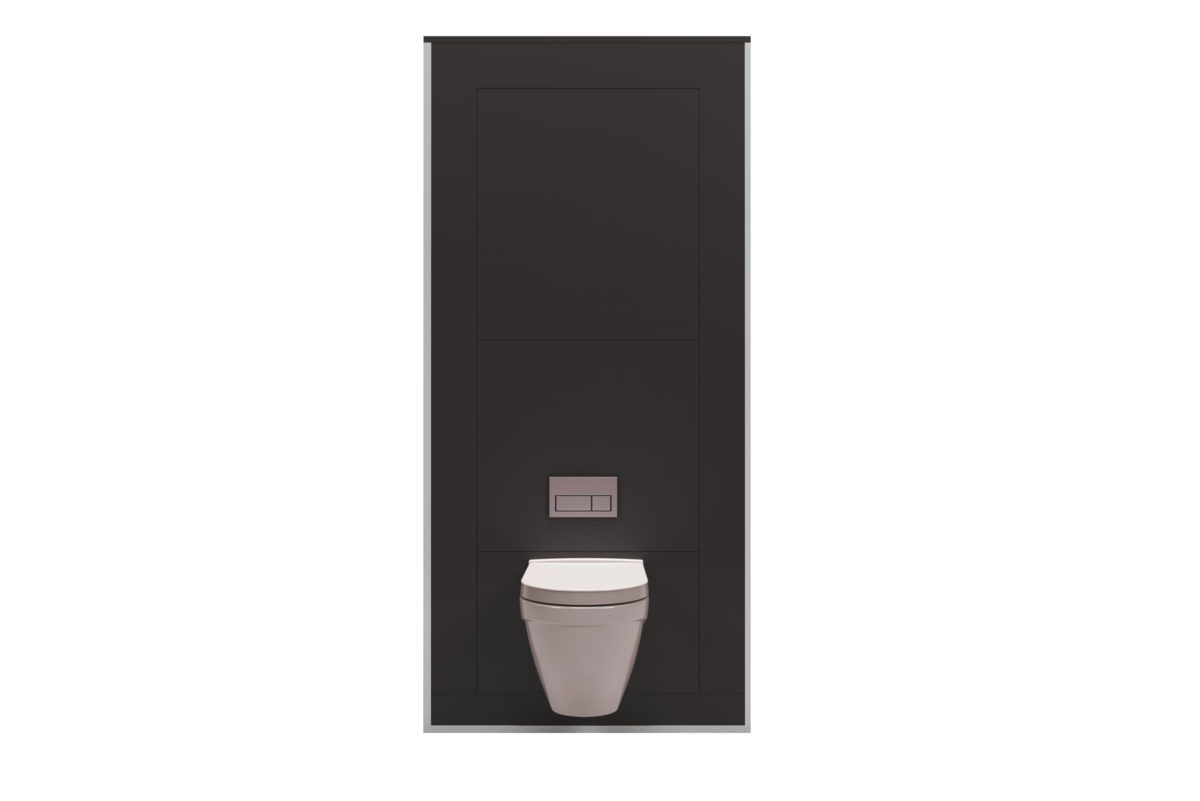

IPS box system What's in the box Flash frame kit 1 x 200 x 1100 x 18MM MFC Plinth1 x 100 x 1100 x 18MM MFC Top Flash1 x 300 x 1100 x 18MM MFC Top Lid2 x 250 x 1682 x 18MM MFC Side Flash Access panel kit 1 x 400 x 680 x 18mm – MFC Excess Panel1 x 600 x 680 x 18mm- MFC Excess Panel1 x 782 x 680 x 18mm -MFC Excess Panel IPS fixing kit 2 X 2000mm Aluminium Wall Channel1 X 1100mm Floor Aluminium Floor Channel2 X 8mm X 1500mm Anchoring Rods12 X Wall Anchoring Plates14 X Pairs Lift Off Keku Panel Clips100 X 4.0 X 20mm Panel Screws9 X 20mm L Brackets8 X Joint Support Straps3 X Wall L Brackets1 X Installation Instructions INSTALLATION View Instruction Manuals CONNECT IPS SYSTEMS have been design for quick easy site installation. They are fully adjustable in width and depth. Overall maximum width 1100m wide and minimum width 800mmTo alter the IPS width, you simply alter the flash frame width to the size which you require. Measuring your internal cubicle width size. For example, if your internal cubicle width is 900mm. You cut the plinth, top flash, and lid to 900mm.Reducing frame width 900mm cubicle width - Excess panel 680mm Min Overhang 20mm either side (40mm)Example 900 – 680 40 = 260 ÷ 2 = 130MM flash frame each side Minimum side flash frames size 80mm each side. Colour choices Choice of 2 x Excess Panels colour optionsChoice of 2 x Flash frame colour options.They can help to prevent vandalism, as well as to make the room easier to clean and more hygienic. Perfect to hide hidden toilet systems and pipe work.Connect IPS box sets have been developed to fit inside our cubicles. Our easy step by step online ordering service is unique and simple. Choose your flash frame colour choose your excess panel colour, then checkout. 1 x IPS system for each cubicle required. We will ship your order out to you within 2 – 5 working days. Description Material - 18mm Melamine face chip board MFCHeight -2000mm overall / not adjustableWidth – 1100mm max – 800mm minExcess panel width - 680mm / not adjustableDepth - Adjustable 400mmWidth adjustment – yesEnvironment -Dry Area onlyPlinth - To be coved up by others on siteColours – 2 x colour available
