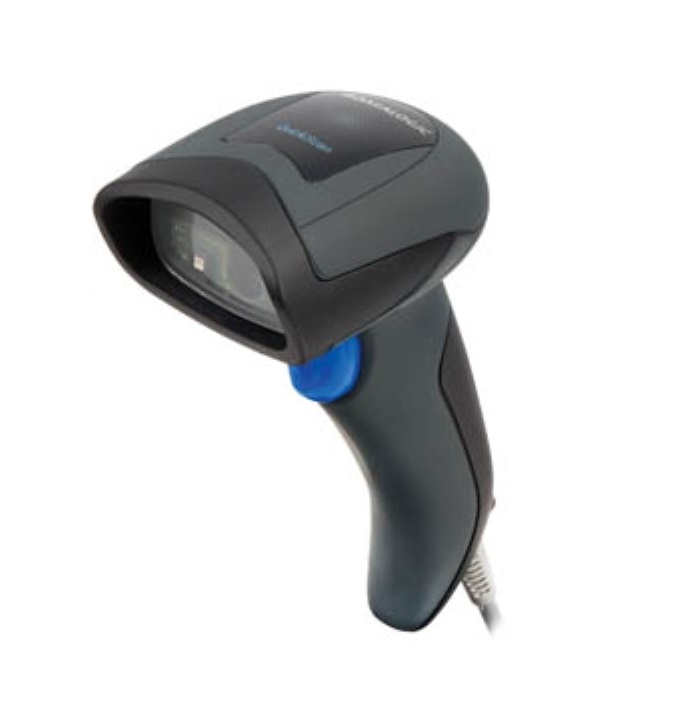

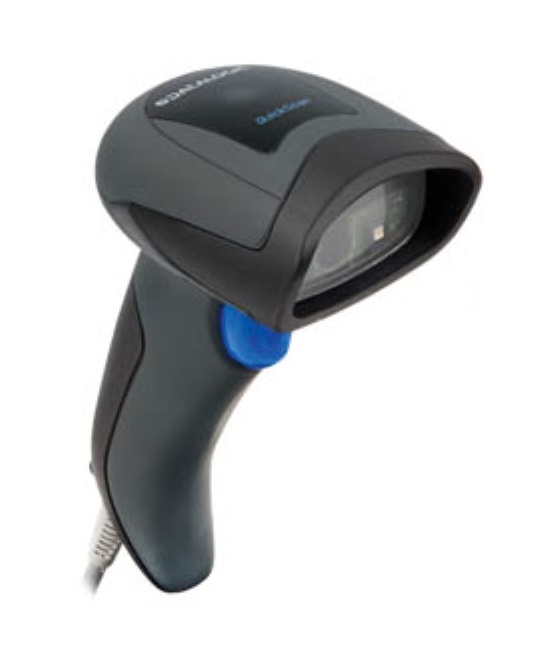

Datalogic QW2430 Detailed Specification FEATURESOutstanding snappinessOmnidirectional readingReduced visual stress with an LED-based aiming systemDatalogic’s patented ‘Green Spot’ technology for good-read feedbackAdvanced motion tolerance opticsWater and Particulate Sealing Rating: IP42Drop resistance to 1.5 m / 5.0 ftHost download capability ready DECODING CAPABILITY 1D / LINEAR CODESAutodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D CODESAztec Code; Aztec Mesas; Data Matrix; MaxiCode; QR Code, Micro QR Code; China Han Xin Code POSTAL CODESAustralian Post; British Post; Canadian Post; China Post; Japanese Post; IMB; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) STACKED CODESEAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417;UPC A/E Composites ELECTRICAL CURRENTOperating (Typical): 140 mA @ 5 VDC Standby/Idle (Typical): 50 mA @ 5 VDC INPUT VOLTAGE 4.5 – 14 VDC /- 10% ENVIRONMENTAL AMBIENT LIGHT Up to 86,000 lux DROP RESISTANCE Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface. ESD PROTECTION (AIR DISCHARGE) 16 kVHUMIDITY (NON-CONDENSING) 0 – 95%PARTICULATE AND WATER SEALING IP42 TEMPERATUREOperating: 0 to 50 °C / 32 to 122 °FStorage/Transport: -40 to 70 °C / -40 to 158 °F INTERFACES INTERFACESKeyboard Wedge / OEM (IBM) USB / RS-232 / USB PHYSICAL CHARACTERISTICS COLORS AVAILABLE Black, WhiteDIMENSIONS 16.3 x 9.1 x 4.1 cm / 6.4 x 3.6 x 1.6 inWEIGHT 145.0 g / 5.11 oz READING PERFORMANCE IMAGER SENSOR` Wide VGA: 752 x 480 pixelsLIGHT SOURCE Aiming: 2 Blue LEDs; Illumination: Red LED 610 – 650 nmMOTION TOLERANCE 25 IPSPRINT CONTRAST RATIO (MINIMUM) 25%READING ANGLE Pitch: /- 65°; Roll (Tilt): /- 360°; Skew (Yaw): /- 60°READING INDICATORS Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LEDRESOLUTION (MAXIMUM) 0.102 mm / 4 mils (Linear Codes) READING RANGES TYPICAL DEPTH OF FIELDMinimum distance determined by symbol lengthand scan angle.Printing resolution, contrast, and ambient light dependent.Code 39: 5 mils: 0.5 to 15.0 cm / 0.2 to 5.9 inEAN/UPCA: 13 mils: 0.5 to 35.0 cm / 0.2 to 13.8 inPDF417: 6.6 mils: 1.0 to 13.0 cm / 0.4 to 5.1 inData Matrix: 10 mils: 1.0 to 13.0 cm / 0.4 to 5.1 in
